Concrete Pump Truck

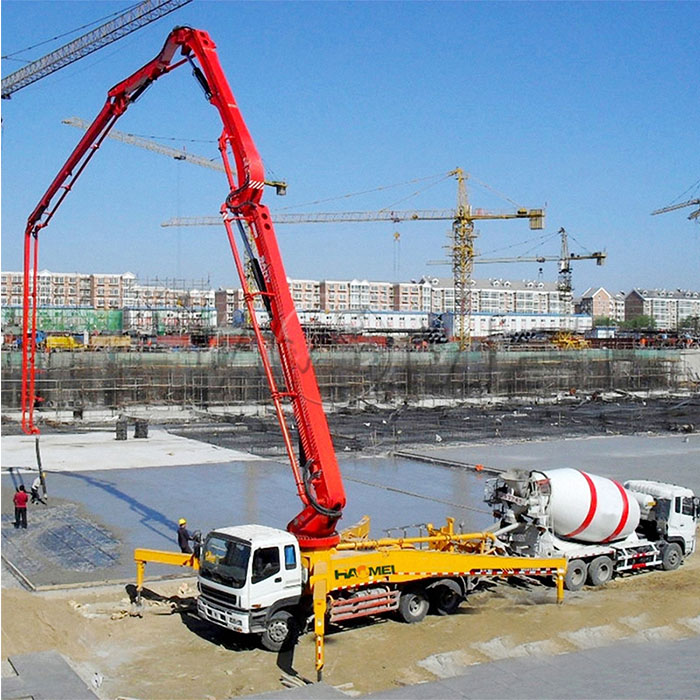

HDT5291THB-37/39/4 Concrete Pump Truck

Description of HDT5291THB-37/39/4 Concrete Pump Truck:

1. The power system of concrete pump truck is consisted by technical diesel engine or electrical engine.
2. It can drive the pumping system directly which is samplized the linkage structure and improved the efficiency.
3. Strong power system reduced the rate of occurring faults.
4. The elements of electrical controlling system adopt Japan and Germany original parts. The excellent assembly quality can fully guarantee the function of electrical controlling system.
5. The special design of hopper and vane reduces the space of mixing blind angle which makes the machine suitable for many kinds of concrete.

Features of HDT5291THB-37/39/4 concrete pump truck price

Pumping capacity can be infinitely variably controlled. pump truck expanding speed can be infinitely controled through quicken-slow device. Original imported GERMANY HBC wireless remote-control device with light weight and handy carrying can enable aggregate carrying pipe to take position accurately simply by manual control. boom slewing speed can be infinitely controled . it’s equipped with emergency brake device and diesel engine auto-control-speed device to lower oil-consumption.original imported GERMANY STEIBEL transfer case and REXROTH pump group;original imported slewing reductor and slewing motor;original imported GERMANY HAWE proportional multiway valve;original imported GERMANY REXROTH valve and valve from ITALY oil-control companies;electric control box adopting totally imported parts while control modules like PLC are all products from GERMANY SIEMENS.
 HDT5291THB-37/39/4 Concrete Pump Truck



Specification Value
output in theory(m3/h) 125
index of the pump carry capacity(Mpa.m3/h) 586
theoretic pumping pressure(Mpa) 8.5
bucket volume(L) 700
height of top surface of bucket(mm) 1370
model of distribution valve(S) valve
max. operation radius(m) 32.6/34.7
max. operation height(m) 36.6/38.7
max. operation depth(m) 25.5/27
open height of boom(mm) 8450/8830
distance between front landing legs(mm ) 7058/6800
distance between rear landing legs(mm) 6848/7000
distance between front & rear landing legs(mm) 6790/7432
diameter of delivery pipe(mm) 125
length of hose pipe(m) 4
rotary range of boom 365°
quantity of boom 4
rotary angle of each boom(°) 92/180/180/270
wire line control distance(m) 33
romote control distance(m) 200
max. speed(km/h) 90
min. turn radius(mm) 8800
8800(m) 7
approach angle(°) 16
departure angle(°) 11
chassis model HOWO ZZ5307N4647C
wheel base between the first & the second axle(mm) 4600
wheel base between the second & the third axle(mm) 1350
front tread(mm) 2022
rear tread(mm) 1830
max. engine output power(kw) 247(2200r/min)
max. engine output torque(n.m) 1350(1100-1600r/min)
max, gradient ability(%) 35
fuel consumption(L/100km) 34
(××)out dimension(L×W×H)mm 12000×2490×3850/12500×2490
total weightkg 29000/12500×2490×3950
