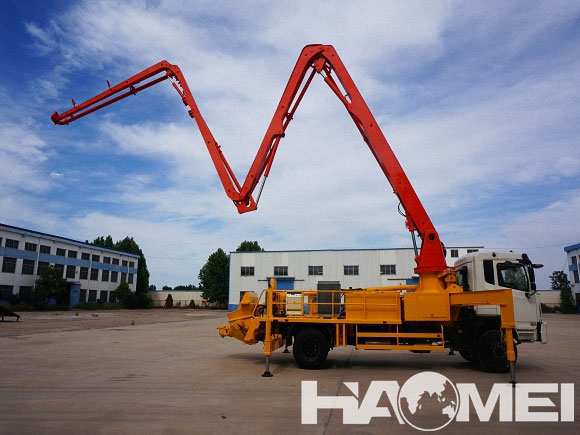

HDT5380THB-45/5 concrete boom pump truck for sale price

  Our HDT5380THB-45/5 concrete boom pump truck for sale is widely used in all kinds of construction situation, making your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle.
 HDT5380THB-45/5 concrete boom pump truck for sale price

Name Unit HDT5380THB-45/5
Output in theory M3/h 125
Index of pump carry capacity   586
Theoretic pumping pressure Mpa 8.5
Bucket volume L 700
Height of top surface of bucket mm 1400
Model of distribution valve   S Valve
Max. Operation radius m 40.7
Max. Operation height m 44.7
Max. Operation depth m 31.3
Open height of boom mm 8495
Distance between front landing legs mm 9550
Distance between rear landing legs mm 9550
Distance between front&rear landing legs mm 9190
Diameter of delivery pipe mm 125
Length of hose pipe m 3
Rotary range of boom 365
Quality of boom   5
Rotary angle of each boom 91/180/180/180/270
Wire line control distance m 33
Max. speed Km/h 85
Min. Turn radius mm 11900
Brake distance m 10
Approach angle 16
Departure angle 11
Chassis model   ISUZU CYH51Y
Wheel base between the first&second axle mm 1850
Wheel base between the second&third axle mm 4605
Wheel base between the third&fourth axle mm 1310
Front tread mm 2065
Rear tread mm 1850
Max. Engine output power kw 287(1800r/min)
Max. Engine output torque N.m 1863(1100r/min)
Max. Gradient ability % 35
Fuel consumption L/100km 40
Out dimension(L*W*H) mm 13100*2500*3900
Total weight kg 38000
