Concrete Pump Truck

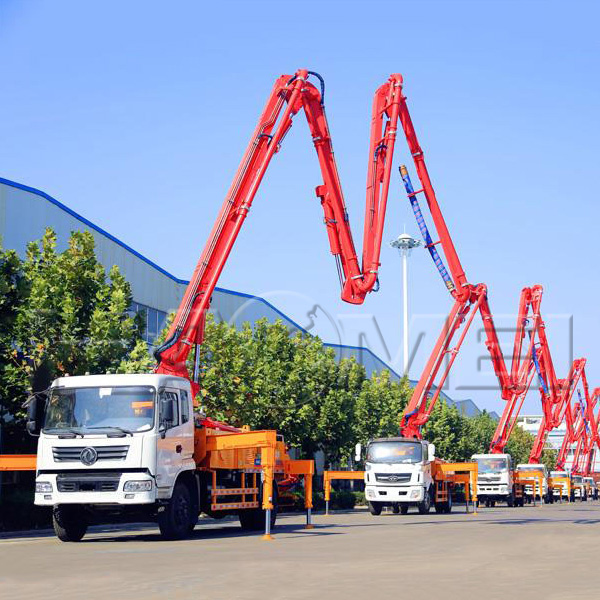

HDT5401THB-45/5 concrete boom pump truck for sale price

We have good price HDT5401THB-45/5 concrete boom pump truck for sale. Our power&hydraulic system is of world famous brands and main oil pumps German HAWE, Rexroth series and Japanese Rawasaki series. The reliability of electric control systems of our concrete boom pumps is high and the centralized lubrication system is equipped with a progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set.
HDT5401THB-45/5 concrete boom pump truck for sale price

Name Unit HDT5401THB-45/5
Output in theory M3/h 125
Index of pump carry capacity   586
Theoretic pumping pressure Mpa 8.5
Bucket volume L 700
Height of top surface of bucket mm 1400
Model of distribution valve   S Valve
Max. Operation radius m 40.7
Max. Operation height m 44.7
Max. Operation depth m 31.3
Open height of boom mm 8495
Distance between front landing legs mm 9550
Distance between rear landing legs mm 9550
Distance between front&rear landing legs mm 9190
Diameter of delivery pipe mm 125
Length of hose pipe m 3
Rotary range of boom 365
Quality of boom   5
Rotary angle of each boom 91/180/180/270
Wire line control distance m 33
Max. speed Km/h 85
Min. Turn radius mm 12100
Brake distance m 10
Approach angle 16
Departure angle 11
Chassis model   HOWO ZZ5437S4667C
Wheel base between the first&second axle mm 1800
Wheel base between the second&third axle mm 4600
Wheel base between the third&fourth axle mm 1350
Front tread mm 2022
Rear tread mm 1830
Max. Engine output power kw 275(2200r/min)
Max. Engine output torque N.m 1500(1100-1600r/min)
Max. Gradient ability % 35
Fuel consumption L/100km 40
Out dimension(L*W*H) mm 13300*2500*4000
Total weight kg 40000
