Concrete Pump Truck

HDT5340THB-42/4 truck mounted concrete pump for sale

  The Haomei HDT5340THB-42/4 truck mounted concrete pump for sale (or Haomei Concrete Boom Pump Truck for short) is developed by Haomei Group on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life. Meantime, Haomei Group optimized the design of the hydraulic system, adopted the latest free fluid technique and greatly lessened the impact of pumping commutation on the distributing boom.

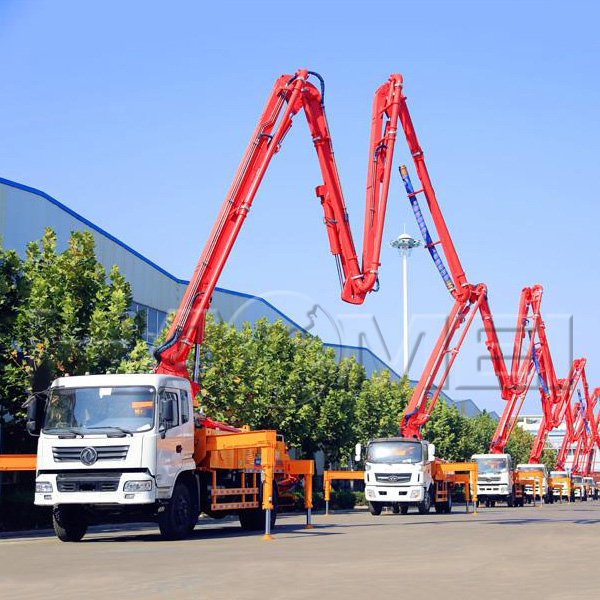

concrete pump truck

Name Unit HDT5340THB-42/4
Output in theory M3/h 125
Index of pump carry capacity   586
Theoretic pumping pressure Mpa 8.5
Bucket volume L 700
Height of top surface of bucket mm 1400
Model of distribution valve   S Valve
Max. Operation radius m 38
Max. Operation height m 41.8
Max. Operation depth m 29
Open height of boom mm 8600
Distance between front landing legs mm 8820
Distance between rear landing legs mm 8500
Distance between front&rear landing legs mm 8490
Diameter of delivery pipe mm 125
Length of hose pipe m 4
Rotary range of boom 370
Quality of boom   4
Rotary angle of each boom 92/180/180/240
Wire line control distance m 33
Max. speed Km/h 85
Min. Turn radius mm 11900
Brake distance m 10
Approach angle 16
Departure angle 11
Chassis model   ISUZU CYH51Y
Wheel base between the first&second axle mm 1850
Wheel base between the second&third axle mm 4605
Wheel base between the third&fourth axle mm 1310
Front tread mm 2065
Rear tread mm 1850
Max. Engine output power kw 287(1800r/min)
Max. Engine output torque N.m 1863(1100r/min)
Max. Gradient ability % 37
Fuel consumption L/100km 38
Out dimension(L*W*H) mm 13800*2490*3995
Total weight kg 34500

  Among leading China truck mounted concrete pump manufacturers, Haomei has obtained many patents in the boom structure optimization and the hydraulic system design. The consummate control of product quality, perfect techniques of product manufacturing and strict procedures of quality inspection make the Haomei Pump Truck a leading product in China and an advanced product in the world. All the steel plates for the boom system are high-strength cold rolling steel plates made by the Swedish company SSAB. The yield strength of the plates exceeds 900Mpa, which ensures that the boom system has the high strength and light weight. The boom system’s distributing pipe, landing legs and oil tank have received 100% stress-removing treatment after welding. Every welding seam has passed the 100% undamaged and crack detection or X-ray radial check to avoid any tiny defects and to make the machine more enduring.

  If you want a specific price of our boom pump trucks, welcome to send inquiries.
